Flap BW 3500 Carpet Rug Duster Dusting Machine
The Euromak FLAP BW 3500 offers high work efficiency with a capacity to clean up to 2,750 m² (29,601 ft²) of carpets daily. It features a space-saving design that leans against the wall, making it ideal for compact workspaces. Equipped with two powerful beater rollers and an advanced vacuum system, this machine ensures even and thorough dust removal for superior cleaning performance.
Product Highlights:
- Motor Power: 5.87 kW
- Max Carpet Width: 11.5 feet (3.5 meters)
- Daily Capacity: 29,601 ft² (2,750 m²)
- Vacuum Capacity: 70,630 ft³ (2,000 m³)
Technical Specifications:
- Beater Rollers: 2 pieces, 2x208 beats per minute
- Sweeping Roller Brush: 6.8-inch (175 mm) diameter

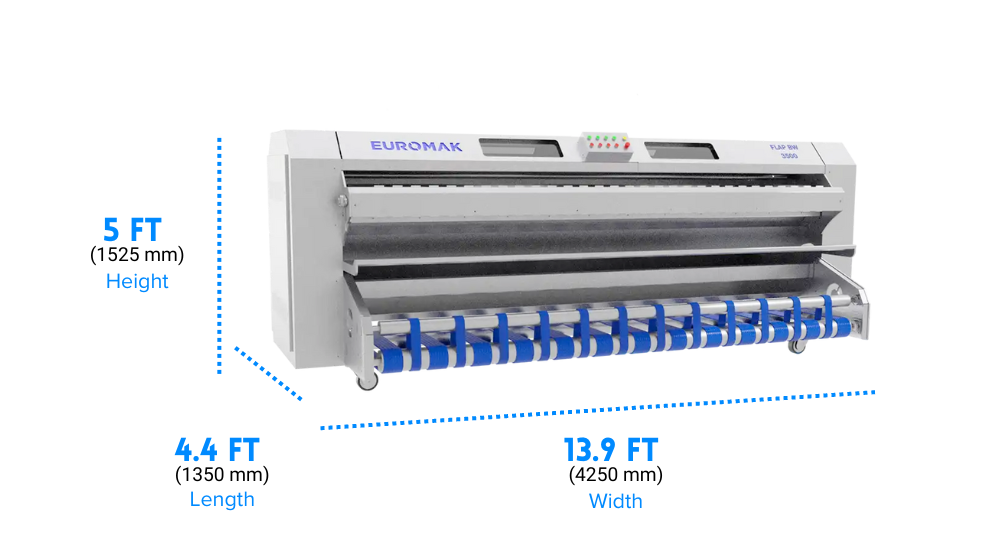

- Dimensions: 4.4 ft (1350 mm) length, 13.9 ft (4250 mm) width, 5 ft (1525 mm) height
Get In Touch
Inquire
Call us at 1-840-888-9880 or send an email to info@euromakusa.com. Our team is here to help. Or fill out the form below and we will get back to you.
Machine Highlights
Advanced Dust Removing System
Dust Remover System
The carpet, positioned in reverse on the belt system, moves through a series of lower and upper beating rollers.
There are two beating rollers, and the system delivers 2 x 208 blows per minute, ensuring every section of the carpet is evenly cleaned.
This thorough beating process effectively removes dust, pile, hair, and other foreign materials that may be embedded in the carpet fibers.
Sweeping Roller Brush
The system includes a specialized roller brush, with a diameter of 175 mm (6.9 inches), designed to remove foreign particles and comb through the carpet.
As the carpet passes through this sweeping brush, it assists in removing substances like adhesives and other residues. This roller brush has been meticulously developed to optimize the combing process for superior cleaning results.
Carrier Brush System
Collected dust, hair, and other foreign objects are efficiently carried out of the machine chamber by brushes placed on the belt.
The conveyor belt system ensures quiet and efficient operation, enhancing the machine’s overall performance.
Dust Brush
The system is equipped with a robust dust brush, measuring L:150 mm (5.9 inches), ensuring an effective dust removal process.
Durable Robust Body
Conveyor Belt
The conveyor belt is engineered for durability and safety, responsible for smoothly moving the carpet through the cleaning stages.
Its two-way belt system allows for the easy handling of heavy carpets, enabling them to be reversed and forwarded with precision using a back-and-forth control mechanism. This ensures carpets that require repeated beating cycles can be efficiently processed.
Vacuum Process
Once the dust removal and brushing stages are complete, the system's powerful vacuum process kicks in. It efficiently collects hair, bristles, dust, dirt, and other debris from the chamber.
The high-powered vacuum system also prevents the spread of dust particles into the air, maintaining a cleaner environment during operation.
High-Performance Engine
Powered by a high-efficiency 5.87 kW (7.87 horsepower) engine, the system ensures excellent performance.
The beating speed ranges between 1-2 m/min (3.3-6.6 ft/min), providing thorough removal of all foreign materials from the carpet.
Future Generation Control
Smart Movement System
The machine is equipped with an intuitive control panel, offering a user-friendly experience and providing operational advantages.
All electronic components are selected for their durability, ensuring reliable performance over long-term use without frequent maintenance issues.
Meets CE Standards
Each machine is manufactured following a stringent quality management system, ensuring compliance with CE standards.
Every stage of production undergoes rigorous testing and certification processes, guaranteeing the highest quality and reliability before the machines are made available for use.
High-Endurance Materials
The machine is built using premium painted iron, ensuring durability and long-lasting performance, particularly in heavy-duty environments.
